GENERAL INTRODUCTION
 Our Automatic Water Level Control Valve is patented product which is instead of traditional float valve.
 It automatically control the water supply and stop according the water level changes.
 It can solve the water leakage problem , save more than 60% water.

 APPLICATION
 Water tank、water tower、livestock drinking、air cooling、hydroponics、machinery、humidifier、swimming pool、toilet 、solar energy、water heating boiler、aquarium and other industrial applications etc

 WORK PRINCIPLE
 When water level rises to water limited line, the Water Level Control Valve wi l l stop supplying water immediately; when water level drop, the valve will start to supply water automatically
| MODEL | SIZE | INSTALLATION | TEMPERATURE | WORK PRESSURE | |
| JYN15 | 1/2'' | Horizontal | Inside | ≤80 ℃ | 0.01~1.0MPa 0.1~10 Bar 1.5-150PSI |
| JYN20 | 3/4" | Horizontal | |||
| JYN25N | 1" | Horizontal | |||
| JYNS15 | 1/2'' | Vertical | |||
| JYNS20 | 3/4" | Vertical | |||

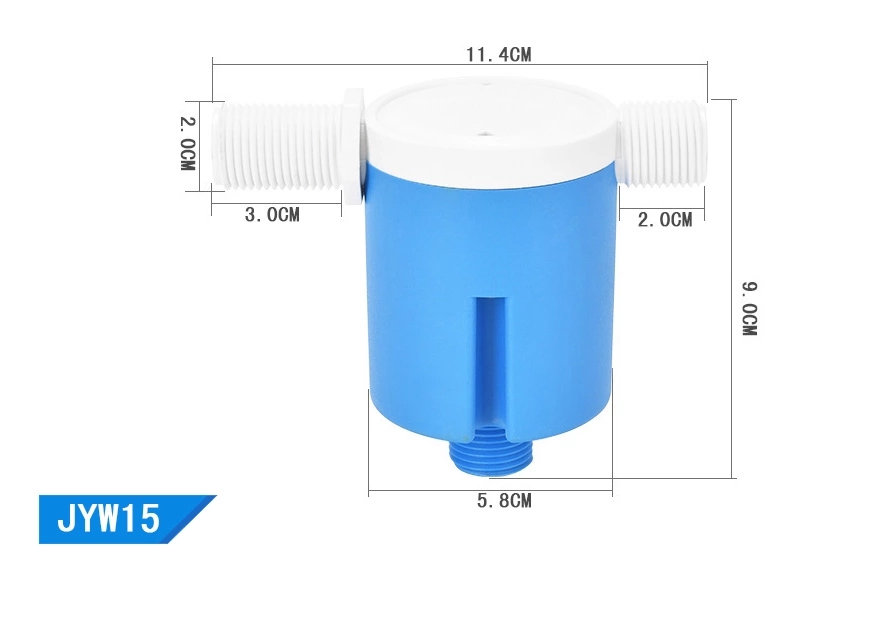

| JYW15 | 1/2'' | Horizontal | Outside | ≤120 ℃ | |
| JYW20 | 3/4" | Horizontal | |||
| JYW25N | 1" | Horizontal | |||
| JYWS15 | 1/2'' | Vertical | |||
| JYWS20 | 3/4" | Vertical | |||
