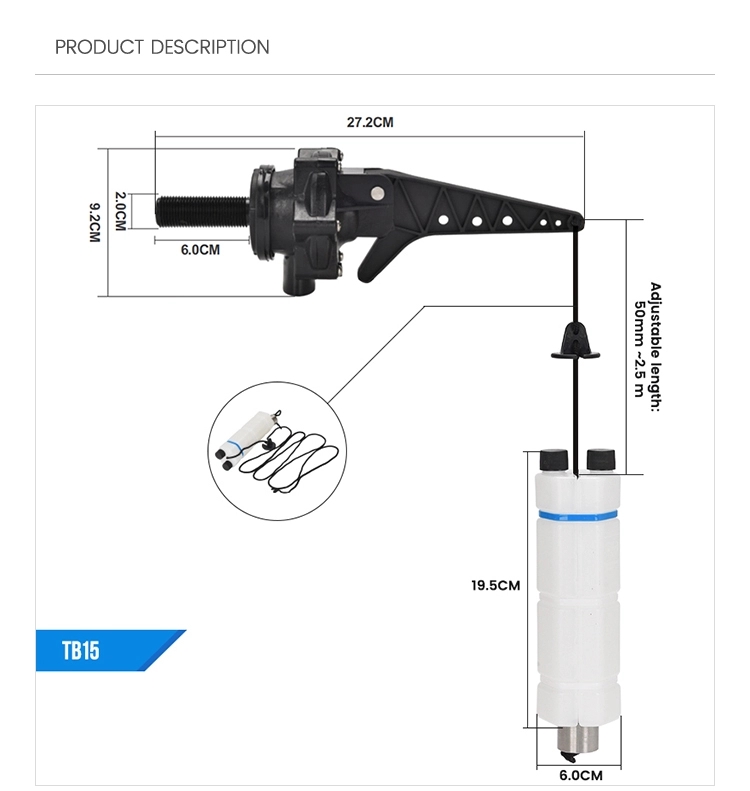

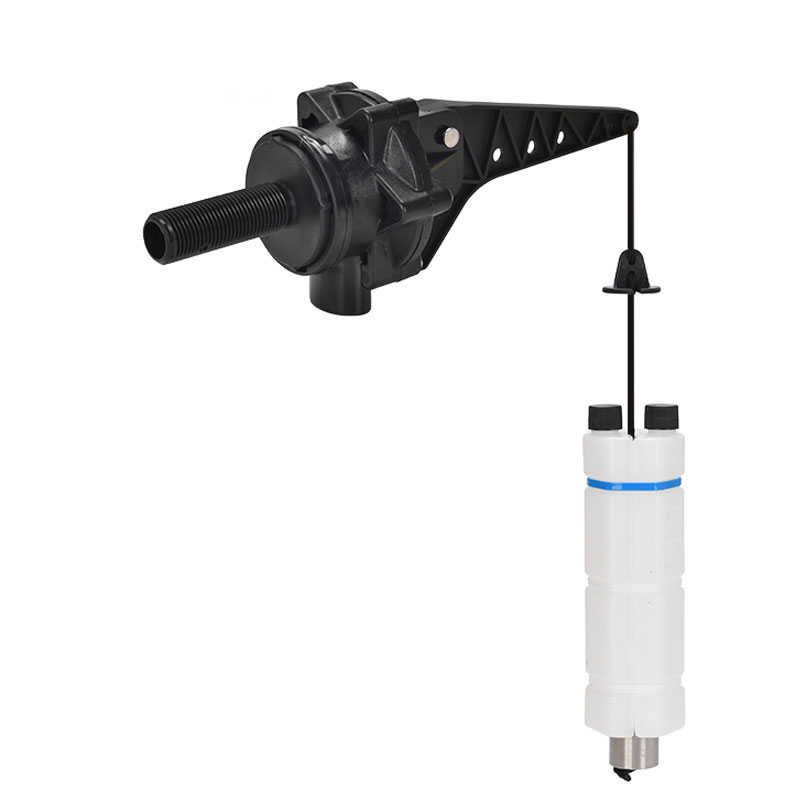

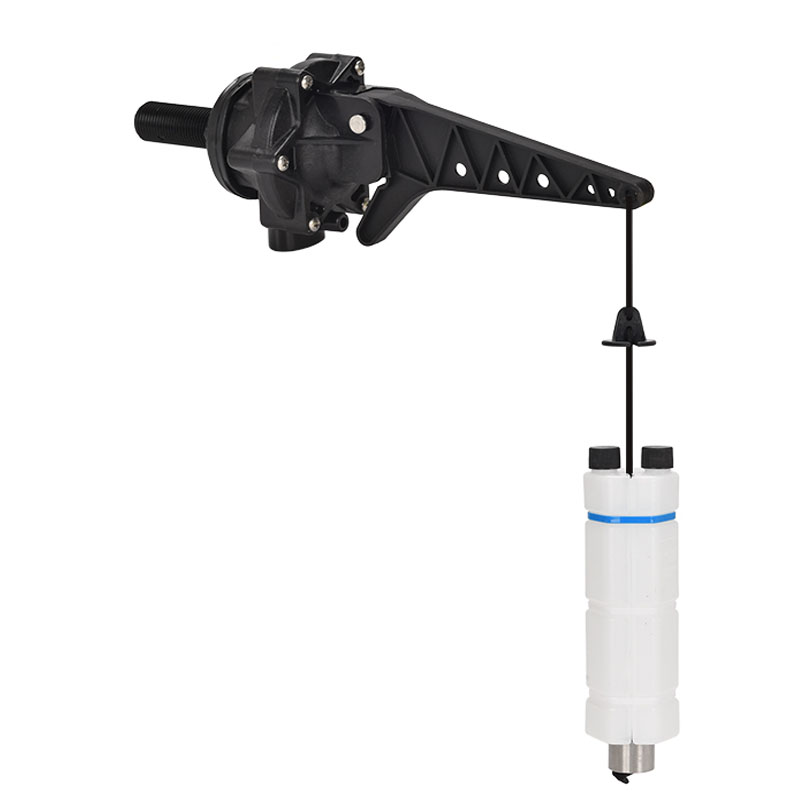

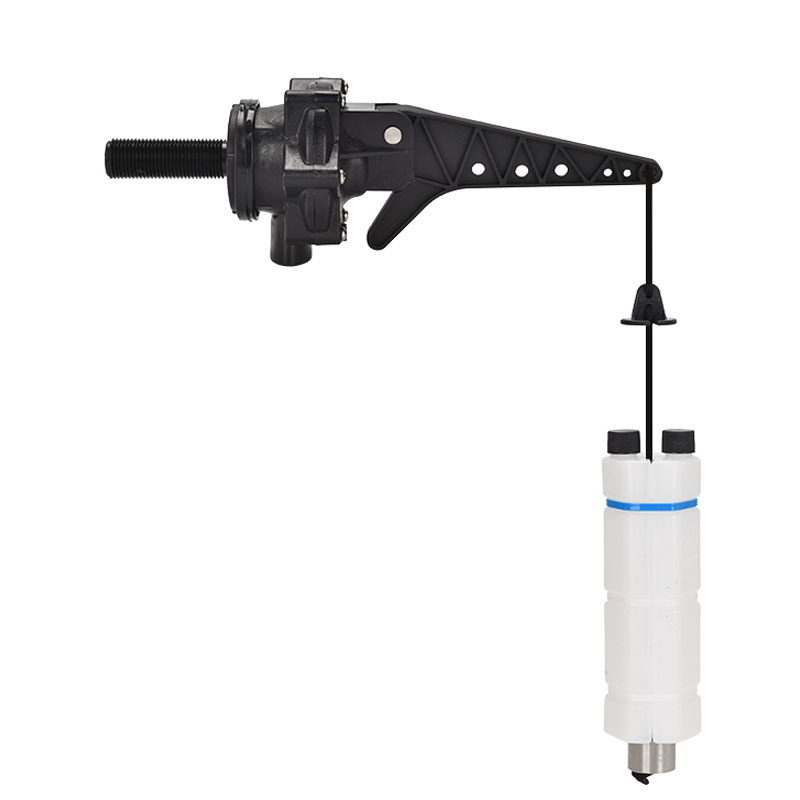

The TANKBUDDY VALVE is patented product.It is ideal for water tanks which are filled by running water or a pressure system controlled by water pump.The valve gives a level difference which is adjustable from 50mm up to 2.5m to minimise starting and stopping of running water or the pump system.Level difference accept Customization
|MODEL||SIZE||FLOW||WORK PRESSURE||ADJUSTABLE WATER LEVEL|
50MM up to 2.5M

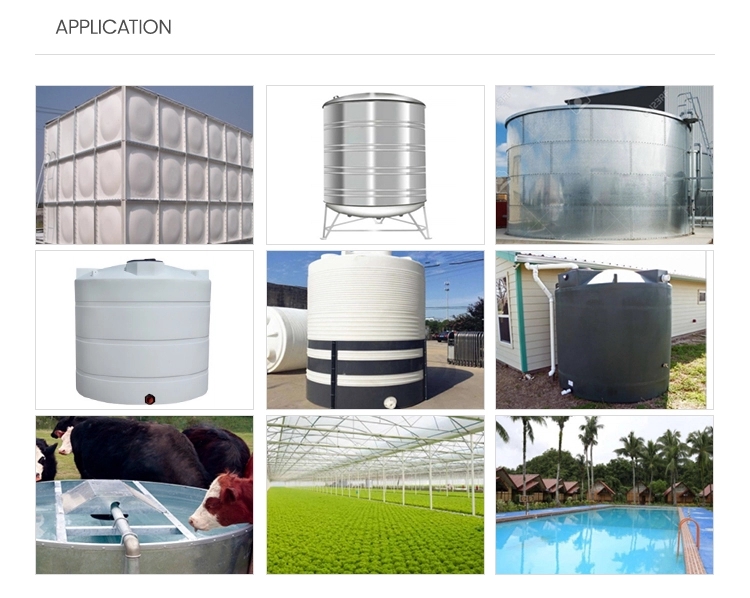

· Water tank,water tower, water pool,Irrigation,animal drinking, Spray equipment,swimming pool etc.

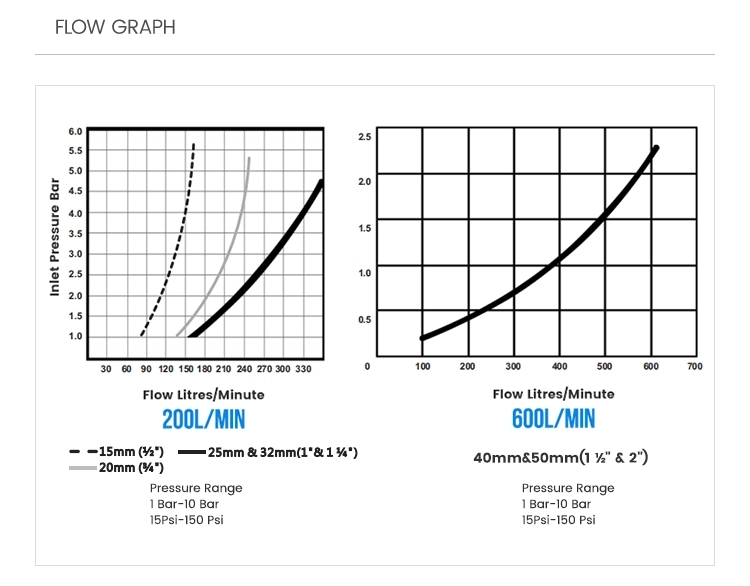

· High flow. Ideal for all makes and models of tanks.

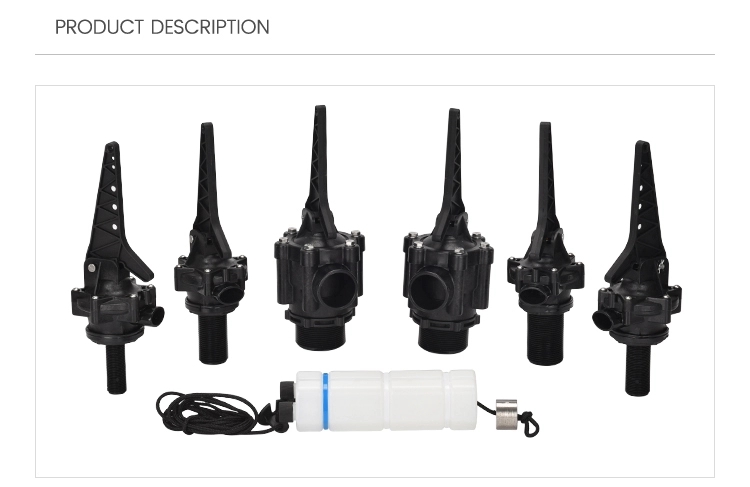

· Available inlet sizes.Keeps pump operation to a minimum.
· Start and stop levels can be easily adjusted to give water level differentials from 50mm to 2.5m.

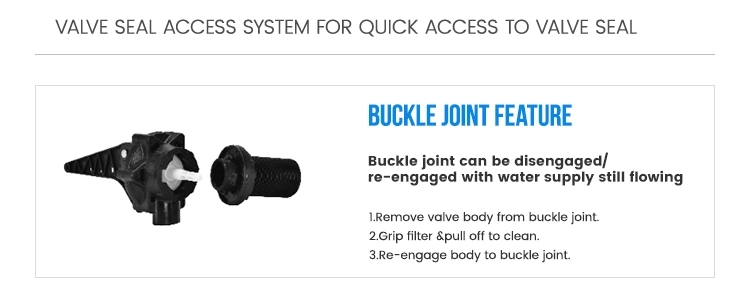

· Valve Seal Access System for quick access to valve seal.

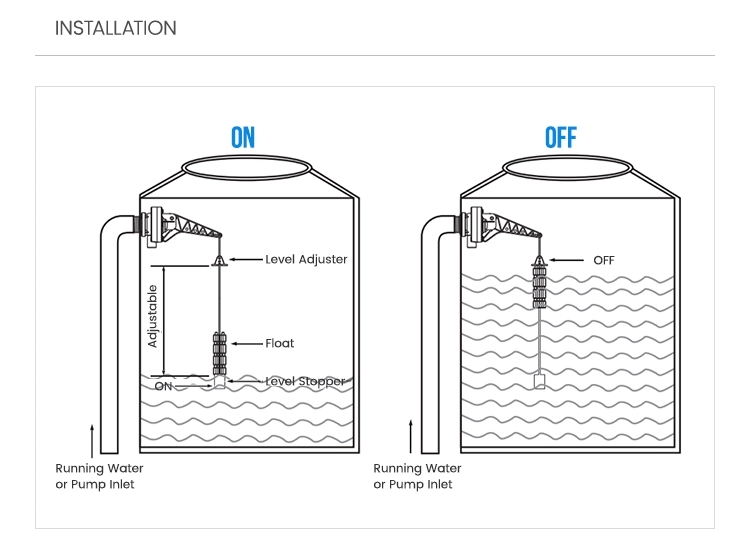

· The valve mounts at the top-side of the tank. It fits easily through a thin walled tank or screws into a threaded

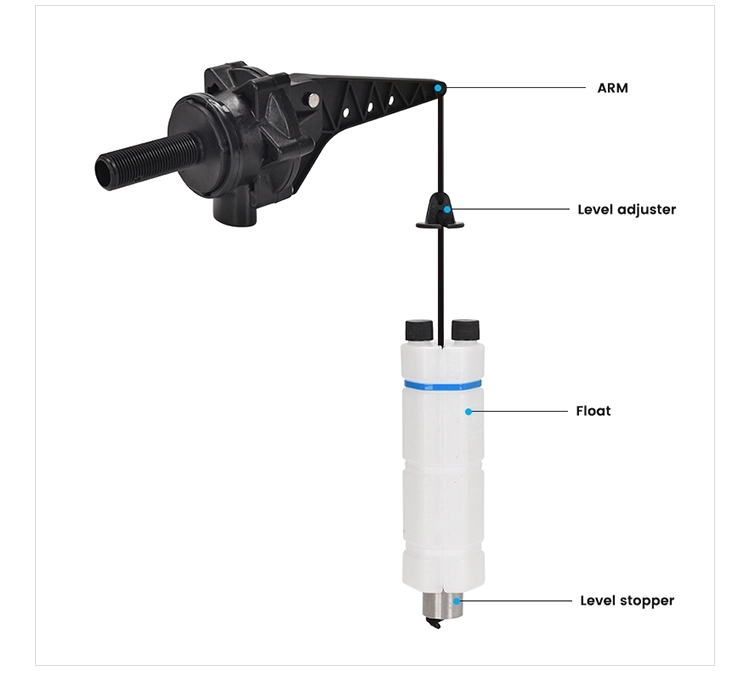

· As the tank empties, the float travels down the corduntil it hits the level stopper. The valve then opens
immediately to give a full flow.
· As we discharge the water, the valve now runs constantly and the float rises until it hits the level adjuster.
This lifts the arm and the valve shuts down.
· Observe the pressure that your pump runs at while the tank is filling. Set the pressure switch to turn the pump
off at a pressure at least one bar above the running pressure.
